3D printing is an additive manufacturing technology that uses digital model files as the basis to create three-dimensional objects by printing layers of adhesive materials. In order to better adapt to market needs, customers use advanced 3D scanning technology to replace traditional measurement methods to detect printers. They hope to obtain accurate 3D data, which can be used in later production improvements to improve all aspects of the printer's functions and make it more convenient to use. Convenient and enhance competitiveness.

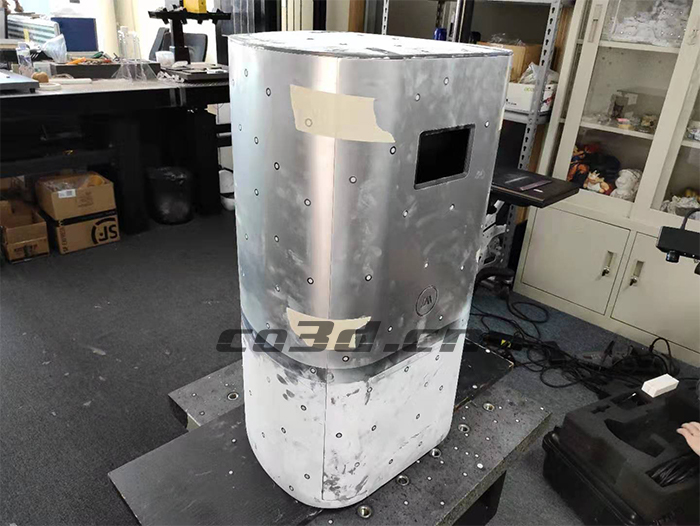

Real photos of printer
3D printers are large and difficult to move during the scanning process. The overall shape is curved, and there is a transparent blank section at the bottom. The scanning laser can easily penetrate through, which makes the scanning work difficult.
For scanning workpieces, customers need to obtain high-precision data in a short time. Traditional 3D scanners take too long to scan, and scanning transparent areas is difficult and cannot achieve the desired results.

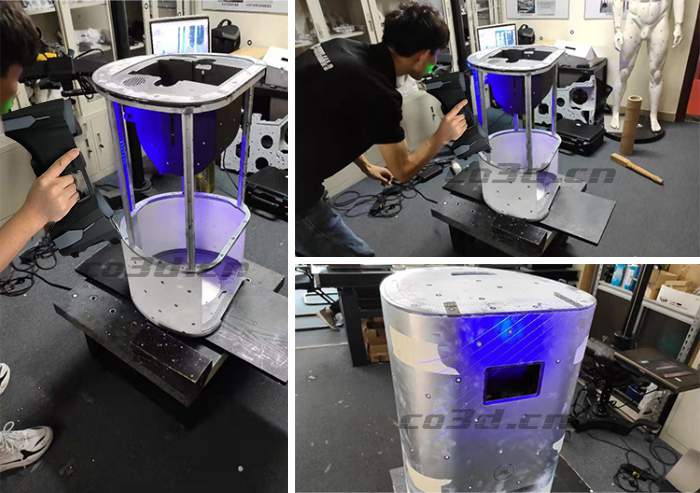

Printer scanning site map
Traditional measurement methods cannot solve the problem and cannot obtain accurate data. Our engineers use the handheld 3D scanner Model 37. The first step is to spray developer on the transparent blank space and stick the marking points for positioning and splicing. Then use a 3D scanner to quickly scan in all directions to obtain the high-precision 3D data of the 3D printer. The scanning speed is fast and the time is short. Flexible operation.

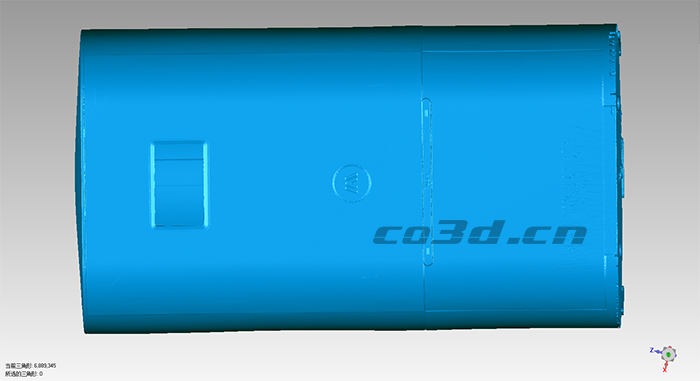

Printer STL data chart
Then, the scanned 3D data is imported into the 3D detection software for processing, and compared with the printer's original digital-analog analysis to detect all aspects of the printer's data. The handheld 3D scanner Model 37 can quickly and accurately acquire 3D scanning data of each part to be measured, with high speed and high accuracy. The customer was very satisfied with the overall scanning process and data results. Successfully solved the customer's problem and provided accurate data as post-design support.

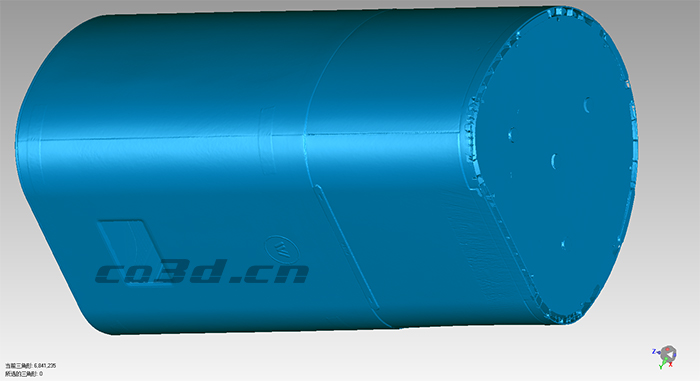

Printer STL data chart

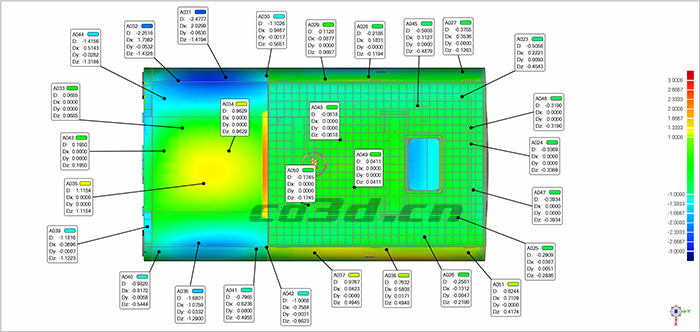

Printer 3D data chart

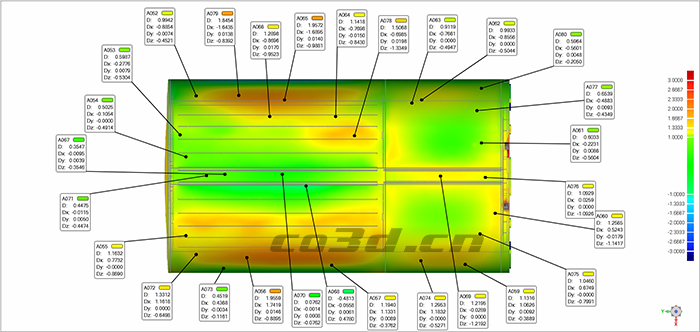

Printer 3D data chart
