Impeller scanning reverse design
Impeller refers to the wheel disc with moving blades, and it can also refer to the collective name of the wheel disc and the rotating blades mounted on it. The unevenness of the gas flow inside the impeller is easy to accelerate wear. In order to reduce the entry of corrosive gas and improve the wear resistance of the impeller, the design and materials can be modified. Customers find our company and hope to obtain data through our three-dimensional scanning technology for comparison and use in later work.
Impeller physical map
The overall outline of the impeller is complex, and the blade part is prone to cause dead angle shadows. The customer needs to be able to accurately measure the data of the impeller. The accuracy is high, but the scanning is difficult.

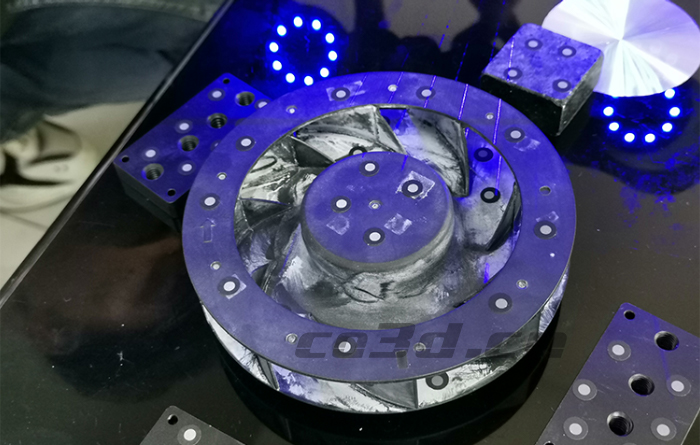

Impeller scan scene
If the traditional scanning method in the past is used again, the data of the scanning impeller will be incomplete, and it will consume a lot of manpower and time, which cannot meet the needs of customers and is highly efficient.
Co3d solutions
According to our accumulated experience in the past, when customers put forward requirements, we can quickly think of feasible solutions. The first is to affix marker points on the scanned samples to facilitate positioning and stitching. Then use our hand-held three-dimensional scanner HOLON751 to quickly and comprehensively scan the sample, the scanner scans extremely fast, the single machine has high measurement accuracy, and easily scans large and medium-sized objects. In addition, it can be visualized in real time, and the part being scanned can be seen on the computer screen, which can be used to make up for missing gaps.

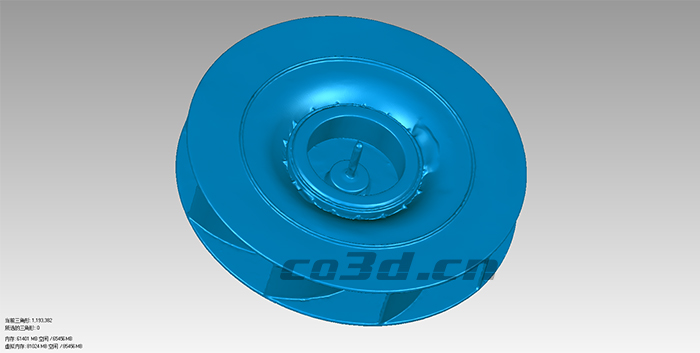

Impeller STL data chart
Scan to obtain high-precision data, import 3D data into 3D software for processing, analyze the data, reversibly design and repair the impeller wear position and view the problems of the impeller. The details of the scanning process are good, and it can be used as a reference in later work. The data is used in the later reconstruction of the impeller.

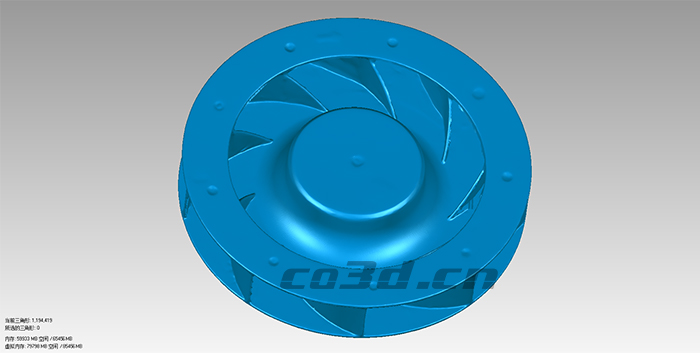

Impeller STL data chart

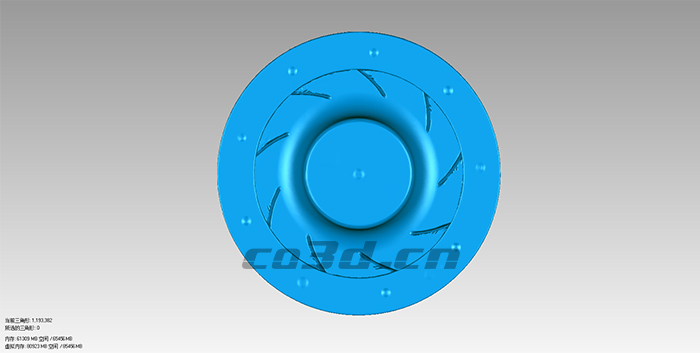

Impeller STL data chart
